Description

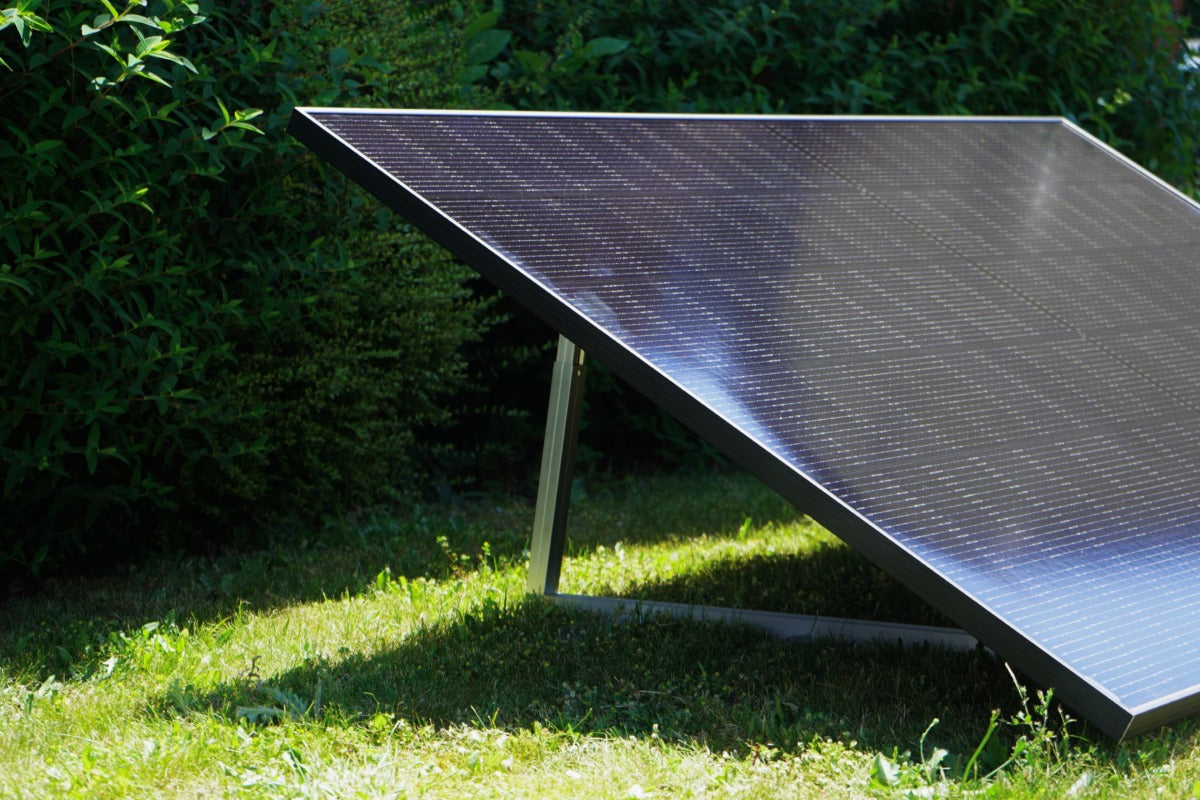

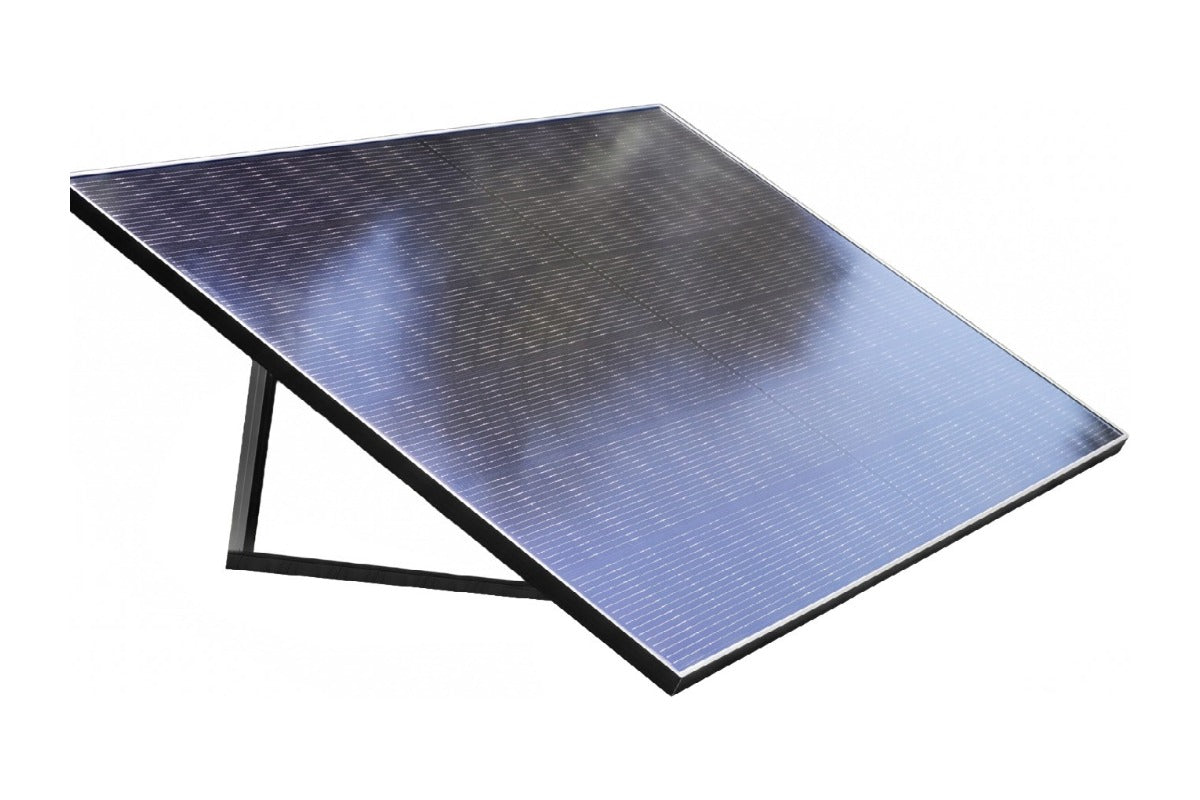

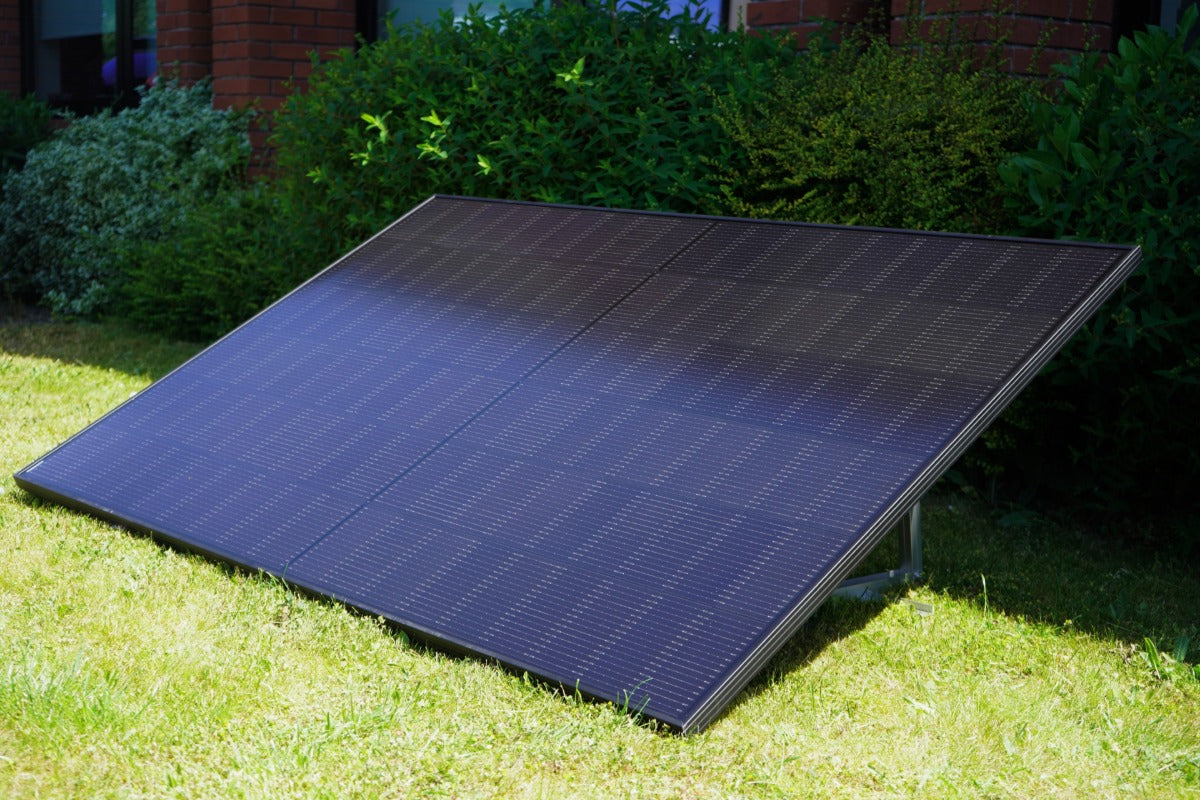

The InstaGen ONE One-Panel Plug-in Solar Kit is best for homeowners who want a compact and straightforward way to start generating their own electricity. With one 435W panel and a flexible mounting system, it's particularly suited to smaller gardens and other outdoor spaces where room may be limited.

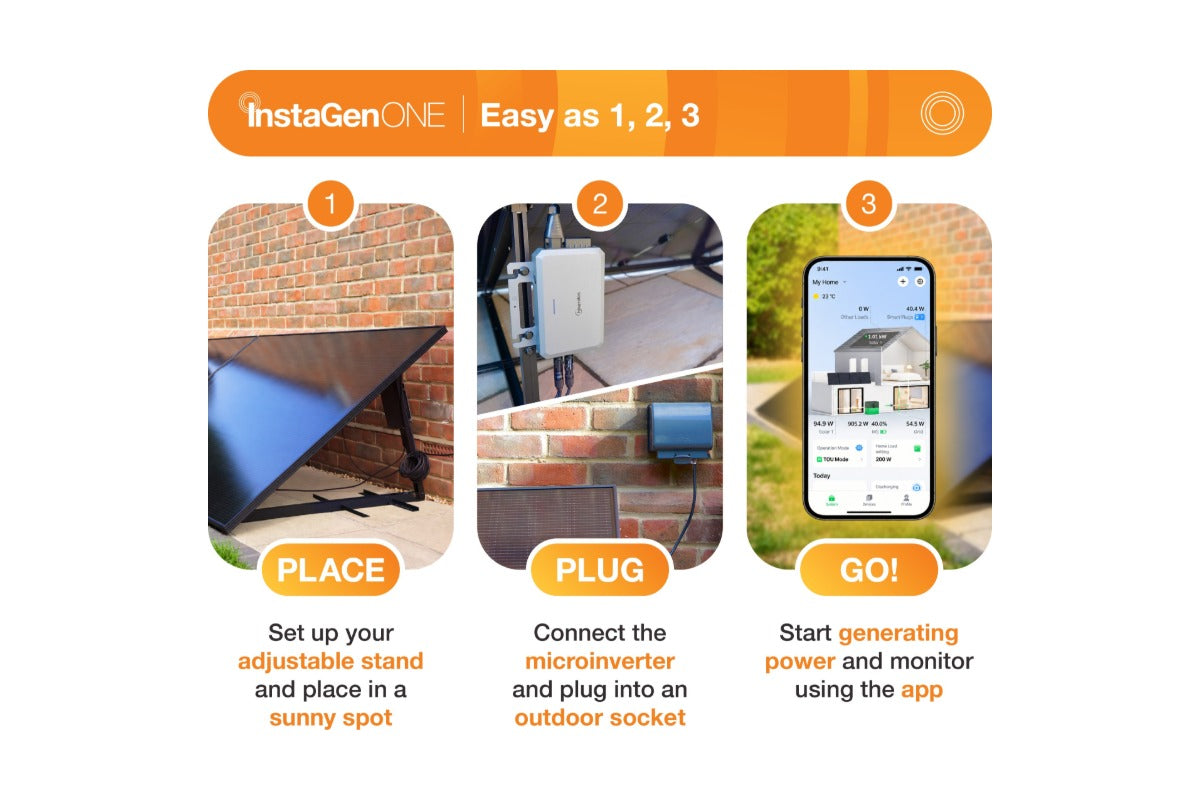

Place. Plug. Go. Position the panel in a suitable sunny spot, connect the system and plug it into a standard wall socket. Once connected, the electricity generated is available for your home to use, helping reduce the amount of power you need to buy from the grid.
Up to 435W generation. The single 435W solar panel can generate up to 435W of renewable electricity, giving you a simple way to start producing power at home.
Compact and flexible. Its single-panel design makes it a great option where space is limited.
Generate your own electricity. The electricity produced by the panel is available for your home to use first, helping reduce how much electricity you need to draw from the grid while the panel is generating.
Monitor your solar generation. Connect to the S-Miles Home app to track system performance and see how much electricity your panel is generating from your phone.
Simple alternative to rooftop solar. With no scaffolding or full rooftop installation required, the one-panel kit provides an accessible starting point for home solar.
Compatibility:
- Suitable for floor-mounted installation only
Solar PV Panel Materials:
- Front glass: 2 mm tempered glass
- Back glass: 2 mm tempered glass
- Encapsulant material: POE/EVA
Frame Material:
- Frame: Anodised Aluminium Alloy
Dimensions:
- Solar panel: 1724 x 1134 x 30 mm (H x W x D)
- Microinverter: 213 × 182.5 × 36.5 mm (H x W x D)
- Universal solar bracket: 1195 x 160 x 75 mm (H x W x D)
What's in the Box:
- 1 x InstaGen 435W solar panel

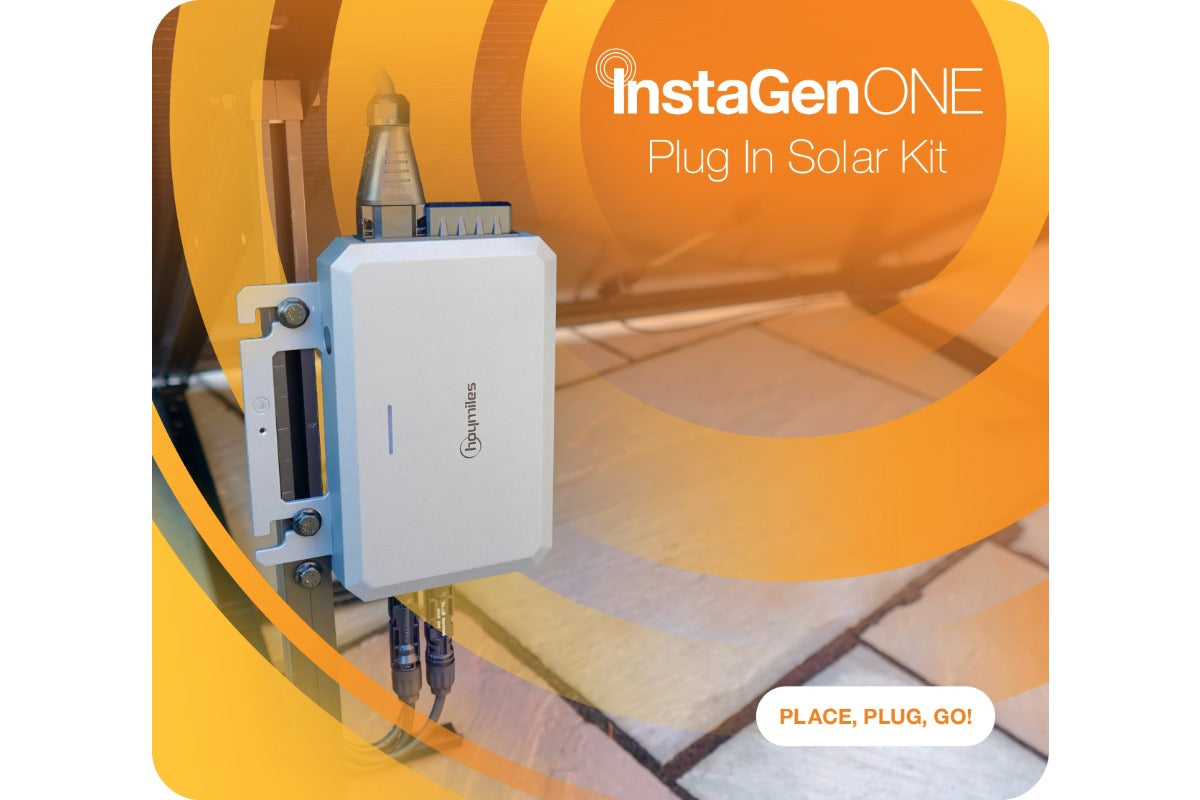

- 800VA Microinverter
- Mounting frame
- Fuse box warning sticker
- Instruction manual
Product Features:
- 4 mm panel cable diameter
- Maximum power Watts-Pmax (Wp): 435 W
- PV panel junction box rated to IP68 for protection against dust and water ingress
- Microinverter rated to IP67 for protection against dust and water ingress
- Up to 435W maximum generation – powered by one 435W solar panel
- Compact plug-in solar solution – ideal where space for a two-panel system is limited
- Simply plug in and generate – connects to your home through a standard wall socket
- Complete one-panel kit – includes one 435W panel, microinverter and flexible mounting system
- Monitor performance from your phone – track solar generation using the S-Miles Home app
Specs
General
- Brand InstaGen
- Product Category Plug-In Solar
- Product Type Plug-in Solar Kit
Solar Panel Features
- Power Output 435 W
- Connections Flex-S3 AC Connector, BS 1363-1 Plug with BS 1362 5A Fuse
- Compatibility Suitable for Floor-Mounted Installation Only
- Open Circuit Voltage 39.3 V
- Short Circuit Current 14.10 A
Dimension
- Width 1134 mm
- Depth 30 mm
- Height 1724 mm
- Weight 38 kg
Warranty
- Warranty 12 months
